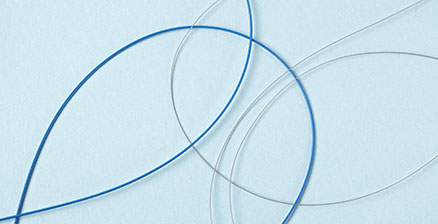

MICROCATHETERS

Whether you require PTFE lined, multiple durometer, variable shaft diameter, embedded marker bands, or thin wall construction, Teleflex Medical OEM should be your development and manufacturing partner for microcatheters. We have the experience and expertise to meet your rigorous specifications.

Technical Information

• OD: Down to 0.026″ (0.66mm)
• ID: Down to 0.014″ (0.36mm)
• Minimum wall thickness:
  • 0.005″ (0.127mm) – braided
  • 0.006″ (0.152mm) – coiled
• 我们与持平或roun microcatheters可用d wire, and coil reinforced configurations. Flat wire is generally used for thin-walled applications where “anti-kink” performance is critical. Coiled shafts are more flexible, but they do not have the same torque capabilities as a braided shaft.
• Full range of material tensile strengths are available from annealed to full hard.

Materials:

• Liner: PTFE or FEP
• Jacket: PEBA, polyurethane, polyethylene, or customer-specified engineering polymers

Fillers:

• Barium sulfate (BaSO4)
• Bismuth trioxide (Bi2O3)
• Bismuth subcarbonate (Bi2CO3)
• Tungsten (W)

Filler loading:highest is 40%

Applications:

• Diagnostic and therapeutic neuroradiology
• Occlusive therapies

Catheter Reinforcement Information

Coils and configurations:

• Stainless steel
• Nitinol
• Platinum
• Variable pitch
• Flat or round wire
• Embedded radiopaque marker bands

Braid wire diameters (stainless steel):

• Flat wire:
  • 0.0007″ x 0.003″ (0.018mm x 0.076mm)
  • 0.0007″ x 0.005″ (0.018mm x 0.127mm)
  • 0.001″ x 0.003″ (0.025mm x 0.076mm)
  • 0.0005″ x 0.0025″ (0.013mm x 0.064mm)
• Round wire:
  • 0.001″ (0.025mm)

Braid wire density: Depending upon wire and tubing sizes, Teleflex Medical OEM can supply up to 250 PPI. Note: Braid wire density is described as picks per inch (PPI), which is the number of wire crossovers per inch of shaft.

Braid Patterns:

• Regular Braid Pattern – This common pattern uses 16 wires in a one under two, over two pattern.
• Diamond Braid Pattern – This pattern uses 16 wires but in a two wire under two, over two pattern. This pattern tends to provide better torque and more kink resistance than the standard pattern, but the diamond braid has a slightly higher cost.
• Diamond Braid Pattern, Half Load – By utilizing half the number of wires, the diamond pattern can be produced in a one wire under one, over one pattern. This pattern provides more torque than the regular diamond pattern but incurs a much higher cost due to the reduced wire load.

Customization Is What We Are All About

Teleflex Medical OEM is your single source solution for product development and manufacturing. Our extensive, vertically integrated capabilities include concept development, engineering, regulatory affairs, material selection, prototyping, testing and validation, manufacturing, finishing operations, assembly and packaging.
