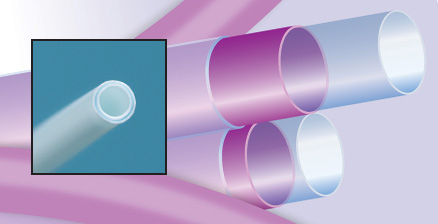

MULTI-LAYER EXTRUSIONS

AT A GLANCE

• Multi-layer, continuous extrusion
• Broad range of material combinations
• Create lower profiles with higher performance

Sometimes a single-layer extrusion cannot meet your specifications for performance. Work with our extrusion experts to create a multi-layer solution that can optimize shaft performance. We can customize up to three layers in order to:

• Improve resistance to burst
• Create lower profiles with higher performance
• Achieve an atraumatic outer layer with tough inner layers
• Smooth the surface for additional radiopaque layers

In addition, Teleflex Medical OEM has the deep expertise and decades of experience to manufacture multi-layer balloons, high-pressure injection extrusions, and tubing for minimally invasive applications.

Technical Information:

• OD: Down to 0.005″ (0.mm)
• ID: Down to 0.001″ (0.mm)
• Minimum wall thickness: 0.001″ (0.mm)
• Tolerances: +/- .0005”

Configurations:

• Bump
• Inner ID taper

Additives:

• Barium sulfate (BaSO4)
• Bismuth subcarbonate (Bi2CO3)
• Bismuth trioxide (Bi2O3)
• Tungsten (W)

应用程序:

• Coronary
• Neonate and Pediatric
• Neuro
• Oncology
• Ophthalmology
• Palliative Care
• Peripheral Vascular
• Urology

Materials:

• EVA (Ethylene Vinyl Acetate)
• Nylon (6, 11, and 12)
• PC (Polycarbonate)
• PE (Polyethlylene)
  • HDPE (High Density Polyethylene)
  • LDPE (Low Density Polyethylene)
• PEBA (Polyether Block Amide)
• PEEK (Polyether Ether Ketone)
• PP (Polypropylene)
• PUR (Polyurethane)
• PVDF (Polyvinylidene Fluoride)

Work With The Extrusion Experts™

Teleflex Medical OEM is a global leader for precision extrusion of high-performance fluoropolymers and thermoplastics. From heat-shrink tubing to multi-lumen tubing to ultra-small tubing, we produce extrusion with outstanding tolerance control, length accuracy, and tubing consistency.
READ MORE

Customization Is What We Are All About

Teleflex Medical OEM is your single source solution for extrusion development and manufacturing. Our extensive, vertically integrated capabilities include engineering, design for manufacturability, regulatory services, material selection and formulation, testing and validation, manufacturing, finishing operations, assembly, and packaging.
READ MORE
