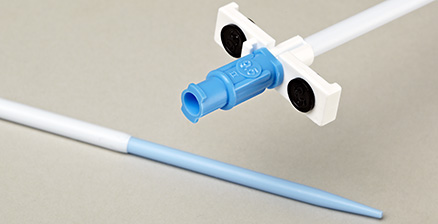

INTERLOCKING SHEATH/DILATOR ASSEMBLIES

Designed for Outstanding Performance

• Our shealth/dilator assemblies are specifically designed for the percutaneous placement of short and long-term therapeutic and diagnostic catheters.
• Patented interlocking hub design that prevents dilator “push back” during insertion.
• Sheath tips have zero clearance between dilator shaft and sheath tip, which reduces the risk of “roll back” during placement.
• Easy grip T-hub provides a secure grip during peeling and removal.
• The dilator tip radius provides a smooth transition from the guidewire.
• French sizes are permanently molded on the dilator hub for easy identification.
• The PTFE peelable design permits elimination of mechanical skiving, providing a smooth and even peel.
• Compatible with most therapeutic and diagnostic catheters and guidewires.
• Standard introducers are compatible with 0.035″ and 0.038″ diameter guidewires.

Configurations:

• Standard sheath overall length: approximately 5.8″ (14.7cm) for PTFE and FEP
• Standard dilator usable length: approximately 6.9″ (17.5cm) for PTFE version, FEP version 7.9″ (19.9cm)
• Additional lengths and half-French sizes can be custom-configured

Materials:

Sheaths

• FEP (Fluorinated Ethylene-Propylene)
• PTFE (Polytetrafluoroethylene)

Dilators

• FEP (Fluorinated Ethylene-Propylene)
• PE (Polyethylene)

Hub

• PP (Polypropylene)

Radiopaque Fillers:

• Dilator: Barium Sulfate
• Sheath: Barium Sulfate or Bismuth Trioxide

Sheath Dimensions

Size	Tube O.D.	Min. Tip I.D.
	inch 毫米	inch 毫米
4F	0.076 1.93	0.052 1.32
5F	0.090 2.29	0.066 1.68
6F	0.103 2.62	0.079 2.01
7F	0.118 3.00	0.092 2.34
8F	0.131 3.33	0.105 2.67
9F	0.144 3.66	0.118 3.00
10F	0.159 4.04	0.131 3.33
11F	0.172 4.37	0.144 3.66
12F	0.185 4.70	0.157 3.99
13F	0.200 5.08	0.170 4.32
14F	0.214 5.44	0.184 4.67
15F	0.227 5.77	0.196 4.98
16F	0.240 6.10	0.210 5.33
18F	0.266 6.76	0.236 5.99
20F	0.299 7.59	0.263 6.68
22F	0.324 8.23	0.289 7.34

Note: Dimensional criteria for reference only. Some half
sizes can be custom-engineered upon request

Dilator Dimensions

Size	Tube O.D.	Tip. I.D.	Taper Length
	inch 毫米	inch 毫米	inch 毫米
4F	0.052 1.32	0.028 0.071	0.265 6.73
5F	0.066 1.68	0.038 0.097	0.310 7.87
6F	0.079 2.01	0.041 0.104	0.355 9.02
7F	0.092 2.34	0.041 0.104	0.400 10.16
8F	0.105 2.67	0.041 0.104	0.445 11.56
9F	0.118 3.00	0.041 0.104	0.535 12.45
10F	0.131 3.33	0.041 0.104	0.535 13.59
11F	0.144 3.66	0.041 0.104	0.580 14.73
12F	0.157 3.99	0.041 0.104	0.625 15.88
13F	0.170 4.32	0.041 0.104	0.670 17.02
14F	0.184 4.67	0.041 0.104	0.715 18.16
15F	0.196 4.98	0.041 0.104	0.760 19.30
16F	0.210 5.33	0.041 0.104	0.805 20.45
18F	0.236 5.99	0.041 0.104	0.895 22.23
20F	0.264 6.71	0.041 0.104	1.00 25.40
22F	0.289 7.34	0.041 0.104	1.00 25.40

Note: Dimensional criteria for reference only. Some half sizes can be custom-engineered upon request

Customization Is What We Are All About

• Our sheath/dilator assemblies can be custom-configured to meet the requirements of your unique application.
• Teleflex Medical OEM is your single source solution for product development and manufacturing. Our extensive, vertically integrated capabilities include concept development, engineering, regulatory affairs, material selection and formulation, prototyping, testing and validation, manufacturing, finishing operations, assembly and packaging.
